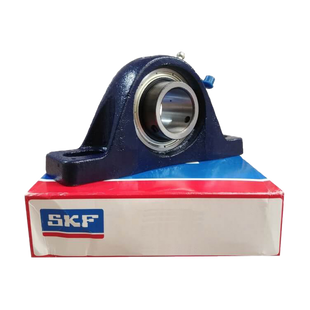

SKF SY 50 TF (Y-Bearing Unit) · SKF SY 50 TF Plummer Block Ball Bearing Unit 50mm

SKF plummer block unit with a cast iron SY 510 M housing and YAR 210-2F insert bearing, grub-screw locking, contact seals and additional plain flingers.

Technical specifications

Bore diameter

50 mm

Outside diameter

114 mm

Width

51.6 mm

Dynamic load rating

35.1 kN

Static load rating

23.2 kN

Weight

2.7 kg

Applications

• Automated Packaging Lines
• Bulk Material Handling Conveyors
• Agricultural Equipment

Technical source documents

• SKF · Partial review 2026-10-15: weightKg, sealingEn, sealingFa, descriptionEn, descriptionFa. SKF Y-bearings and Y-bearing units (6001). See per-field pages and unresolved items in catalog review ledger; this date does not verify the whole product.
