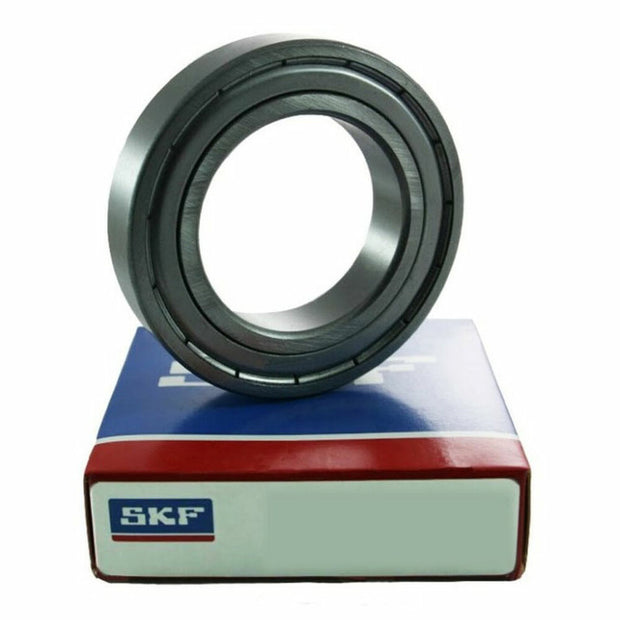

6306-2Z · SKF 6306-2Z deep groove ball bearing

SKF shielded single-row deep groove ball bearing with two steel shields. Dimensions and ratings are transcribed from the SKF catalog table; check the current product page before engineering selection.

Technical specifications

Bore diameter

30 mm

Outside diameter

72 mm

Width

19 mm

Dynamic load rating

29.6 kN

Static load rating

16 kN

Weight

0.36 kg

Technical source documents

• SKF · SKF catalog table, PDF page 65, designation 6306-2Z
• SKF · Partial review 2026-10-15: rMin, calculationFactorF0, cageMaterialEn, cageMaterialFa, clearanceOptions, sealingEn, descriptionEn. SKF deep groove ball bearings, Japanese catalog excerpt, section 1.2. See per-field pages and unresolved items in catalog review ledger; this date does not verify the whole product.
