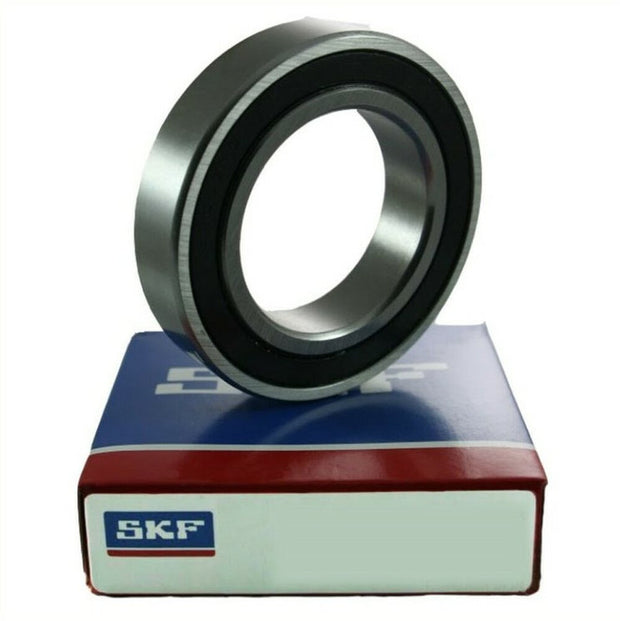

6302-2RSH · SKF 6302-2RSH deep groove ball bearing

SKF sealed single-row deep groove ball bearing with two contact seals. Dimensions and ratings are transcribed from the SKF catalog table; check the current product page before engineering selection.

Technical specifications

Bore diameter

15 mm

Outside diameter

42 mm

Width

13 mm

Dynamic load rating

11.9 kN

Static load rating

5.4 kN

Weight

0.085 kg

Technical source documents

• SKF · SKF catalog table, PDF page 59, designation 6302-2RSH
• SKF · Partial review 2026-10-15: rMin, calculationFactorF0, cageMaterialEn, cageMaterialFa, clearanceOptions, sealingEn, sealingFa. SKF deep groove ball bearings, Japanese catalog excerpt, section 1.2. See per-field pages and unresolved items in catalog review ledger; this date does not verify the whole product.
