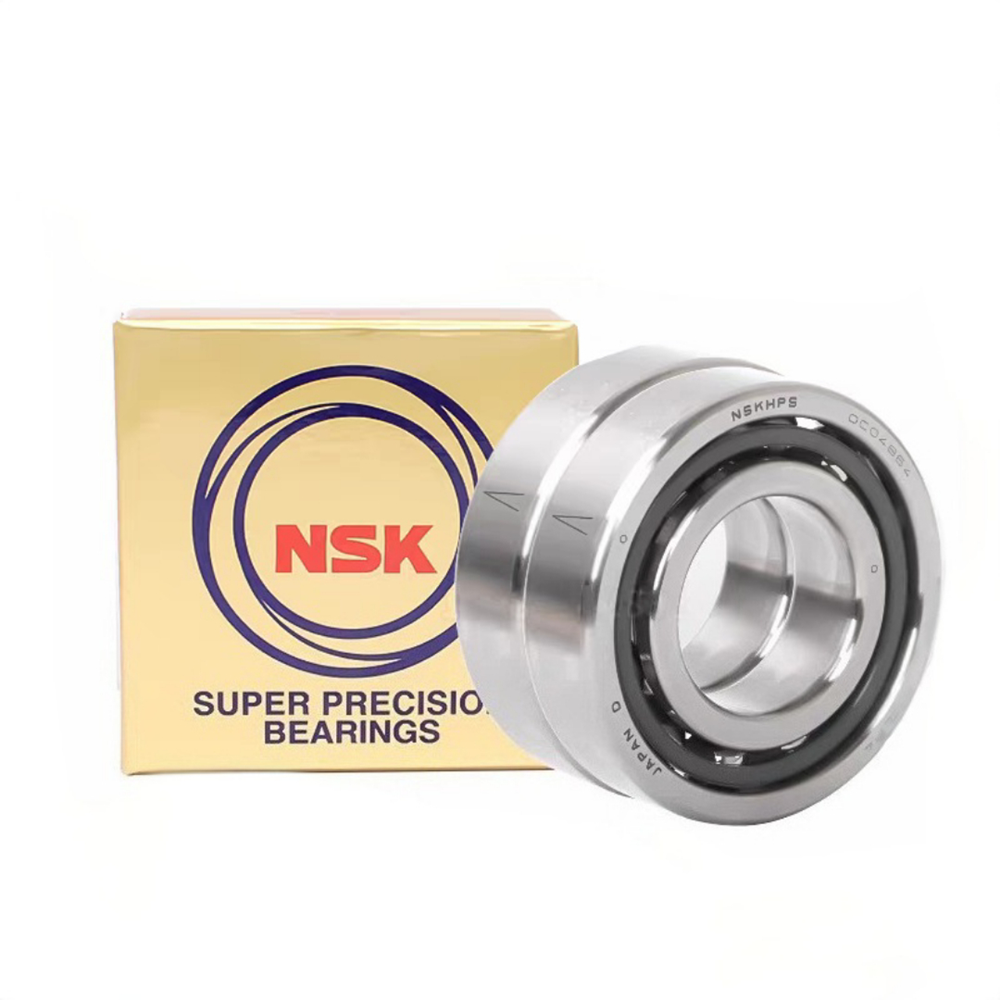

NSK 7010 CTYNDBLP4 Super Precision · NSK 7010 CTYNDBLP4 Super Precision Angular Contact Spindle Pair
High-precision matched duplex pair of angular contact spindle ball bearings with 15° contact angle, polyamide cage, and ISO Class 4 runout tolerance.
Technical specifications
- Bore diameter
- 50 mm
- Outside diameter
- 80 mm
- Width
- 16 mm
- Dynamic load rating
- 25.8 kN
- Static load rating
- 19.8 kN
- Weight
- 0.26 kg
Applications
- 5-Axis CNC Milling Spindles
- High-Speed Internal Grinders
- Medical & Dental Machining Heads
