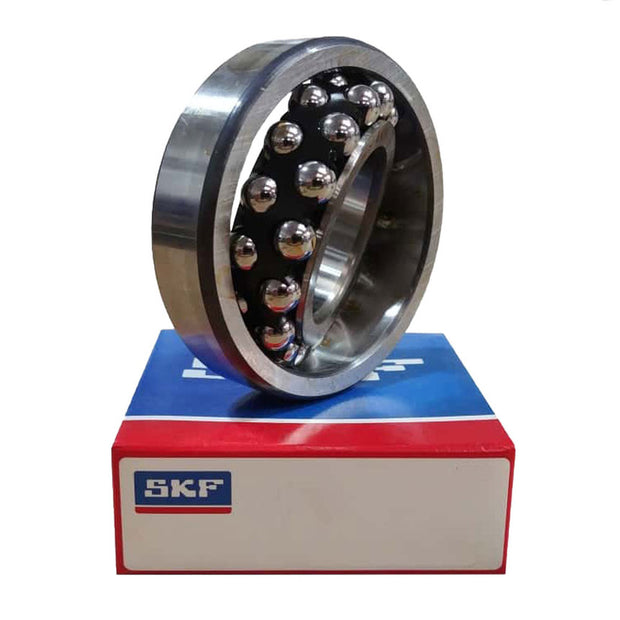

1309 EKTN9 (Self-Aligning Tapered Bore) · Self-Aligning Ball Bearing 1309 EKTN9

Double row self-aligning ball bearing with tapered bore (1:12) compensating for angular misalignment up to 3 degrees.

Technical specifications

Bore diameter

45 mm

Outside diameter

100 mm

Width

25 mm

Dynamic load rating

39 kN

Static load rating

13.4 kN

Weight

0.93 kg

Applications

• Textile & Spinning Machinery
• Food Grade Conveyors
• Long Flexible Shafts
